XUNKUNER AC Servo Motor Kit, AC220V 3000rpm L3000 17-bit Encoder RS485 Servo Motor Driver Controller Kit for CNC (600W with Brake)
4.5 (126 items)
Limited Time SaleUS$89.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221091696 | Release Date | 2026/05/03 | List Price | US$59.60 | Model Number | 221091696 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- {600W with brake Motor }Protection structure: IP65;Number of poles: 5 pairs; Rated power supply: 220V; Rated speed: 3000r/min; Peak speed: 5000r/min; Rated torque: 1.91N.m; Max torque: 5.73N.m; Rated current: 3.5A; Max current: 10.5A
- {M864S Driver } Input voltage: AC220V (50/60Hz); Power:0.1KW-1KW;Cooling method: Heat dissipation air cooling; Encoder type: 17 bit magnetic encoder.Control mode: SVPWM control; Operating temperature: 0℃-+55℃; Storage temperature: -20℃-80℃; Protection level: IP54
- {17 bit Encoder} 17 bit single loop absolute value encoder, 5 pairs of poles,to ensure the accuracy ; NOTE:The encoder only has a single turn function. If you need multi turn function, please replace it with an encoder with multi turn function yourself
- {Driver Feature}1. Communication method: RS485; 2. Protection functions: overcurrent, overvoltage, overload, and undervoltage protection, encoder abnormality protection, position error protection, etc; 3. Control methods: position control method, speed control method, torque control method, position speed hybrid control method, position torque hybrid control method, speed torque hybrid control method; 4. Display operation: 5-digit LED digital display, 4 operation buttons; 6 Other functions can be found in the manual
- {Application} Widely used in carving equipment, industrial robotic arms, semiconductor equipment, measuring equipment, medical equipment and other fields in the market. Attention: The product is for general industrial use and should not be used on devices that may directly endanger personal safety
| Speed | 3000 RPM |
|---|---|
| Voltage | 220 Volts |
| Brand Name | XUNKUANER |
| Horsepower | 600 Watts |
| Model Name | 60BSF-S06030-S010B-Z3( |
| Part Number | 60BSF-S06030-S010B |
| Manufacturer | XUNKUANER |
| Material Type | Metal |

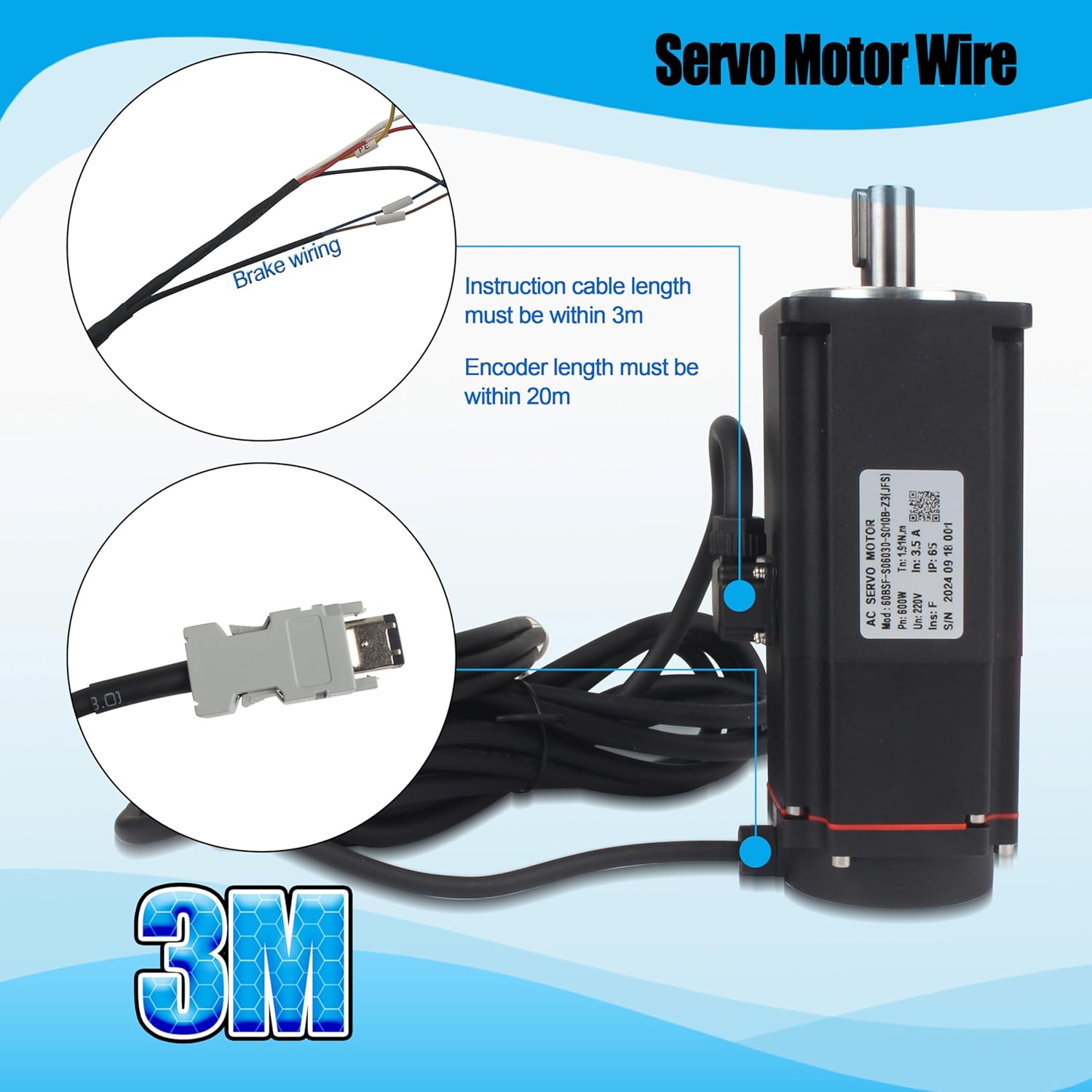

| Included Components | with brake AC Servo Motor + M864 Servo Drive + 3m Cable with Plug |
