Oil Pan Alignment Tool Kit Aluminum Alloy Front Rear Cover Alignment Set for LS Engines 4.8 5.3 5.7 6.0L LS1 LS2 LS3 LS6 L99 LS4

Spec:Item Type: Front Rear Cover Oil Pan Alignment ToolMaterial: Aluminum AlloyFitment:Fit for 4.8 5.3 5.7 6.0L LS1 LS2 LS3 LS6 L99 LS4 LS9 LSA LQ4 LQ9 L76 L92 EngineInstruction:On the LS engine, the oil pan is a stressed member and adds to block rigidity. For this reason, it can't be slapped in place; along with the front and rear engine covers, it must be carefully aligned with the block.Installation of Front Cover: (no seal installed in Front cover):Loosely install the front coverInstall the seal tool over the snout of the crankshaft using the large endCheck the alignment to the oil panTighten the front cover bolts to specificationsInstall the balancer lip sealPackage List：3 x Alignment Tools4 x ScrewsNote：You will have to exercise care to align horizontally the cover to the oil pan.

• [ FIT FOR LS ENGINES] This oil pan alignment tool kit is designed specifically for 4.8 5.3 5.7 6.0L LS1 LS2 LS3 LS6 L99 LS4 engines. The precision engineered tools ensure proper alignment of front rear covers and oil pans critical for maintaining block rigidity and sealing performance. Includes specialized tools for front cover installation on all LS engine variants.
• [PRECISION ALIGNMENT FOR OPTIMAL SEALING] The seals must be perfectly concentrically aligned with the balancer hub and rear sealing surface to prevent leaks and ensure long service life. Our alignment tools feature PTFE inner sealing lips that create a seal when properly installed. This prevents oil leaks and maintains proper engine function over time.
• [HIGH QUALITY ALUMINUM ALLOY CONSTRUCTION] Manufactured from rugged anti aluminum alloy these tools withstand heavy use without damage or deformation. The durable material ensures precise alignment is maintained during installation and provides long lasting performance even in demanding conditions.
• [ORIGINAL SPECIFICATION QUALITY] These alignment tools are manufactured to exact original equipment specifications meeting strict quality standards. The precise engineering ensures compatibility with your LS engine providing professional grade results for both mechanics and DIY enthusiasts.

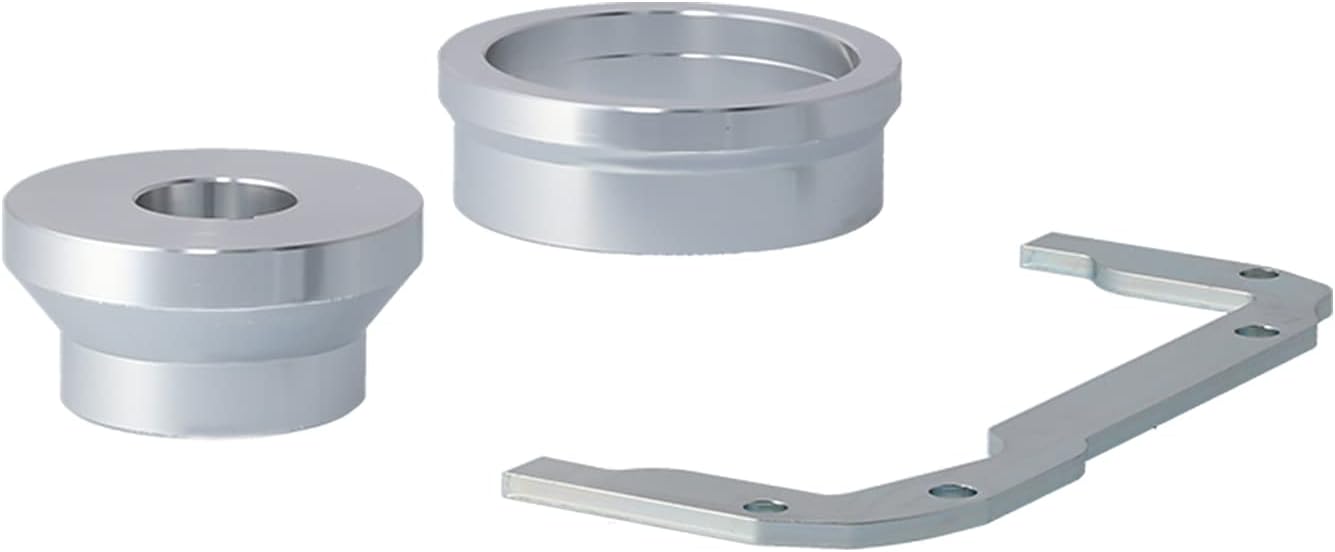

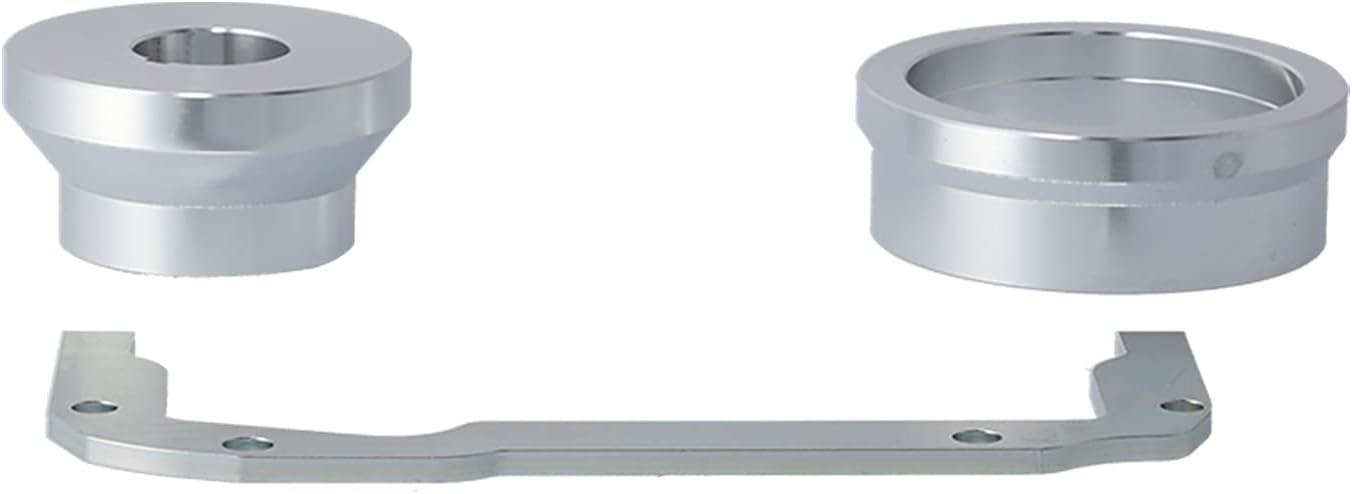

• [COMPLETE ALIGNMENT SOLUTION KIT] The kit includes three alignment tools and four screws providing everything needed for proper front rear cover and oil pan alignment. Easy to follow instructions guide you through the critical alignment process to ensure proper installation and optimal engine performance.
