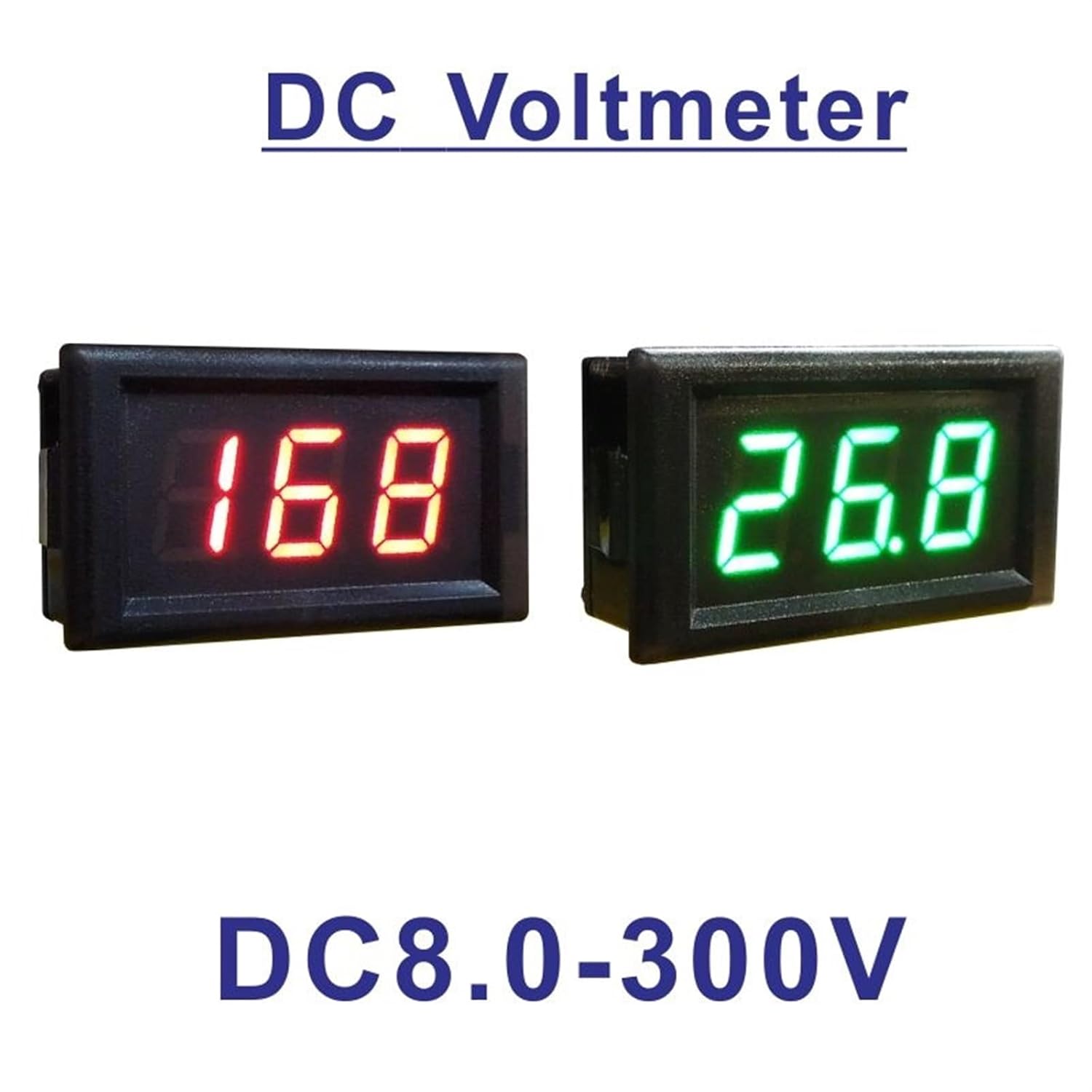

DC 8-300V LED Digital Voltmeter Voltage Gauge for Car E-Bike Voltage Tester 600V High Voltage Monitor Volt Panel Meter 200V(DC14-300V Green)

AmmetersAttention:1, The front of this meter is waterproof, the back cover is not waterproof. Please be carefull.2, The front cover is integrated design, so the front cover is warterproof. Also the front cover adopts PC material of high temperature resistance, sun proof, explosion proof to inject.3, Test range optional: DC8.0-300V, 14-100V, 14-300V, 14-600V4, Two-wire designed, power is taken directly from the measured voltage, no need additional power supply.5, Very convenient to connect to the internal circuit of car, electrocar, solar systerm, motorbike. 6, This meter has reverse protection, will not be burned if wires reverse connection.7, The maximum voltage cannot exceed the test range, or the meter will be burned.Specification:Installation: Embedded installationAccuracy:1% ± 2 digits<;20mATest Voltage: DC8.0-300V, DC14-100V/300V/600VMeasurement speed:500mS/timeOutlinesize(approx):54*30*21mmDisplay type:0.52'' LED(red or green digits)Mounting dimensions(approx):Outlinesize(approx):54*30*21mmFeatures:With two wires,wiring is simple and convenient.With a back cover,safe to use.Attention:The front cover is waterproof. The back cover is not waterproof.With reverse polarity protection function.<;10V:0.1V,100V:1V)Suitable for 12V,24V,36V,48V,60V,72V,84V,92V,120V etc.Extreme working conditions:Operating temperature: -10 ~ +50 Working pressure: 80 ~ 106kPaWorking humidity: 10 ~ 80% (no condensation)Sun exposure: no direct exposure
