1/2 in. to 4 in. HDPE Plastic Pipe Socket Fusion Welder Complete Tool Kit
4.9 (135 items)
Limited Time SaleUS$1,014.54 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218612057 | Release Date | 2026/05/03 | List Price | US$676.36 | Model Number | 218612057 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The HY4PRO-X-C-KIT is a 110V thermo-plastic pipe welder complete kit. It is suitable for joining a variety of thermoplastic pipes and fittings (from 1/2" CTS to 4" IPS) for different applications in the industry. This machine can weld pipe made of Polyethylene (PE, HDPE, MDPE), Polypropylene (PPR), Polybutene (PB). This tool kit is designed and manufactured according to the American National Standard ASTM International F2620.
- 110V - Fahrenheit Display - IPS Inches adapters.
- This machine is ready to weld thermo-plastic pipe from 1/2 in. IPS to 4 in. IPS.
- Complete Kit consists of pipe welding tool (heating iron), heating adapters, cold rings locking pliers, chamfers, tool bag with insulated pockets, accesories bag, stand and screw set.
- Includes complete set of IPS heating adapters (male and female) 1/2 in. 3/4 in. 1 in. 1-1/4 in. 1-1/2 in. 2 in. 3 in. 4 in.

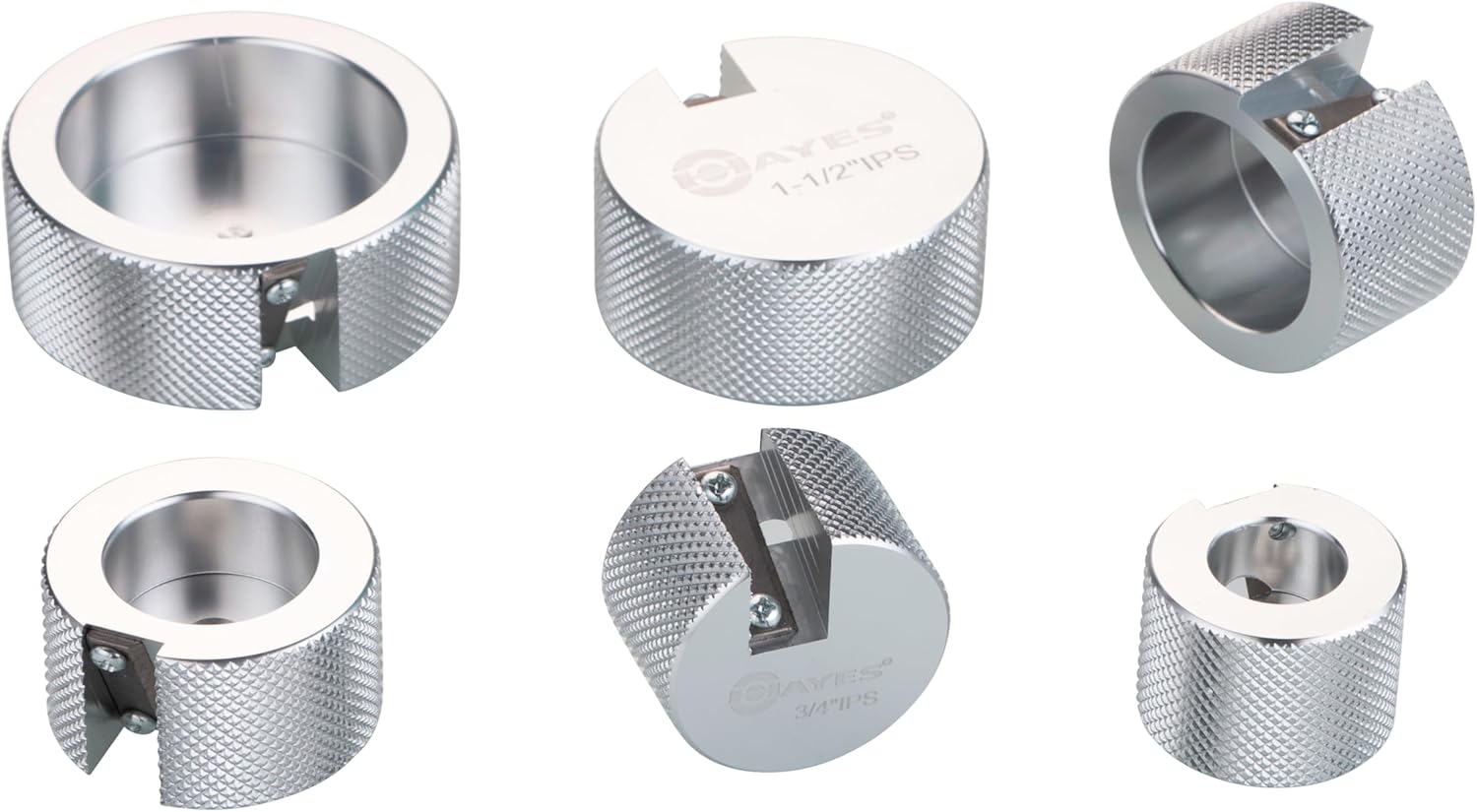

- Includes set of IPS chamfer depth gauge 1/2 in. 3/4 in. 1 in. 1-1/4 in. 1-1/2 in. 2 in.
- Includes set of IPS cold rings locking pliers 1/2 in. 3/4 in. 1 in. 1-1/4 in. 1-1/2 in. 2 in. (Additional 3 in. and 4 in. chamfer depth gauge and cold rings are available and sold separately)
- The pipe welding tool has a heat resistant aluminum plate with internal controller and thermocouple sensor that is programmed, adjusted and sealed for the most stable temperature. The pipe welding tool has a digital Fahrenheit screen with adjustable temperature control, ergonomic handle and voltage protection.
- All our socket/heating adapters (Male and Female) go through a 5-stage process, which includes sandblasting the pure aluminum, then a base coat and followed by 3 layers of teflon to reduce polymer adhesion. This all increases the durability and longevity for a quality product.
- Electric voltage: 110V / Frequency: 50/60 Hz / Plug: NEMA 5-15 (USA). Working temperature: 0-554°F / Display: Fahrenheit. Total electric power: 1200 watts.
- Gross weight: 31.97 lbs. / Packing: 23 in. x 9 in. x 11.4 in.
| Size | 4 Inch |
|---|---|
| Color | Orange |
| Usage | The HY4PRO-X-C-KIT is a 110V thermo-plastic pipe welder complete kit suitable for socket fusing pipes and fittings made of HDPE (Polyethylene), PPR (Polypropylene), PB (Polybutene) and PVDF. |
| Voltage | 110 Volts |
| Wattage | 1200 watts |
| Material | Stainless Steel |
| Item Weight | 32 pounds |
| Part Number | HY4PRO-X-C-KIT |
| Manufacturer | Hayes |
| Power Source | ac |
| Item model number | HY4PRO-X-C-KIT |
| Product Dimensions | 23 x 9 x 11.4 inches |
| Included Components | Pipe welding tool (heating iron), Tool bag with insulated pockets. Accesories bag. Set of IPS heating adapters (male and female) 1/2 in. 3/4 in. 1 in. 1-1/4 in. 1-1/2 in. 2 in. 3 in. 4 in. Set of IPS chamfer depth gauge 1/2 in. 3/4 in. 1 in. 1-1/4 in. 1-1/2 in. 2 in. Set of IPS cold rings locking pliers 1/2 in. 3/4 in. 1 in. 1-1/4 in. 1-1/2 in. 2 in. (Additional 3 in. and 4 in. chamfer depth gage and cold rings are available and sold separately) Stand and screw set. |
| Item Package Quantity | 1 |
